Titanium 2516 Digital Cutter


The Titanium 2516 Digital Cutter Carton Box Cutting Machine is the premier choice for printing and packaging enterprises seeking to enhance their market competitiveness through intelligent production and significant cost reduction. Leveraging decades of experience in the printing and packaging industry, this digital cutter has facilitated numerous successful packaging projects. Ideal for a wide range of applications including gift boxes, packaging lining, display racks, and more, this versatile cutter is designed to handle various materials with precision, from coated paper to corrugated board and beyond

SKU: Titanium2516 Category:

See the Titanium 2516 in Action

How it works
Model No.   Titanium 2513       Titanium 2516     Titanium 1113     Titanium 1816

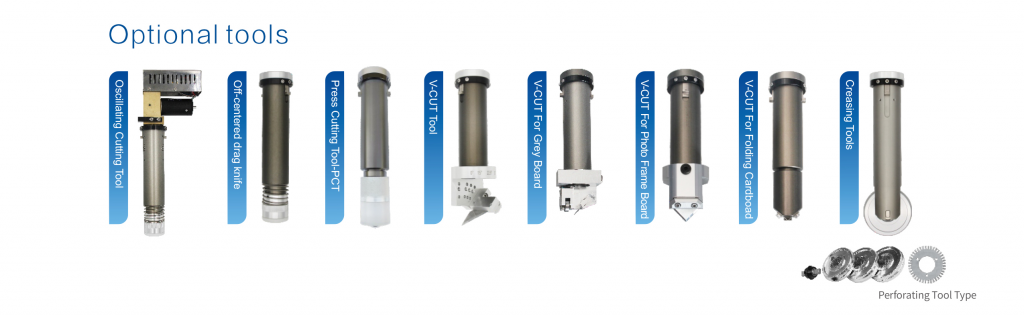

  Multifunctional head   Easy to change different tools. Engraving and router. Oscillating thorough cutting/ Kiss cutting/ Creasing/ Plotting/ Laser positioning, and   precise camera registration.
  Tools   Various kinds of cutting blades, different size of creasing wheels
  Safety device   Infrared sensor, responsive, safe and reliable
  Max. Speed   Up to 1500 mm/s
  Cutting speed   Up to 1200 mm/s(Depends on different materials)
  Cutting thickness   Up to 50mm(Depends on different materials)
  Cutting material   All kinds of corrugated paper, grey cardboard, KT board, PVC expansion sheet, honey  comb plate,  light slide,  PP gum, car sticker, flag       fabric, EPE foam, foam, arcylic  etc.
  Repeatability   Up to 0.05 mm
  Repeat Precision   Up to 0.01 mm
  Buffer memory   2GB
  Interface   Ethernet port
  Work command   HP-GL compliant format
  Transmission distance   Up to 350m
  Transmission system   Digital servo driver, straight rail, synchronous  belt, guide screw
  Numerical control panel   EN LED Touch screen
  Power Supply   AC 380V/220V±10% , 50HZ/60HZ
  Working Environment   Temperature 0-35 degree; Humidity 60% – 80%
  Effective Cutting Area  2500mm*1300mm    2500mm*1600mm     1100mm*1300mm          1800mm*1600mm
